I-PEX 20346-030T-32R 极细同轴电缆
20346-030T-32R
产品详情

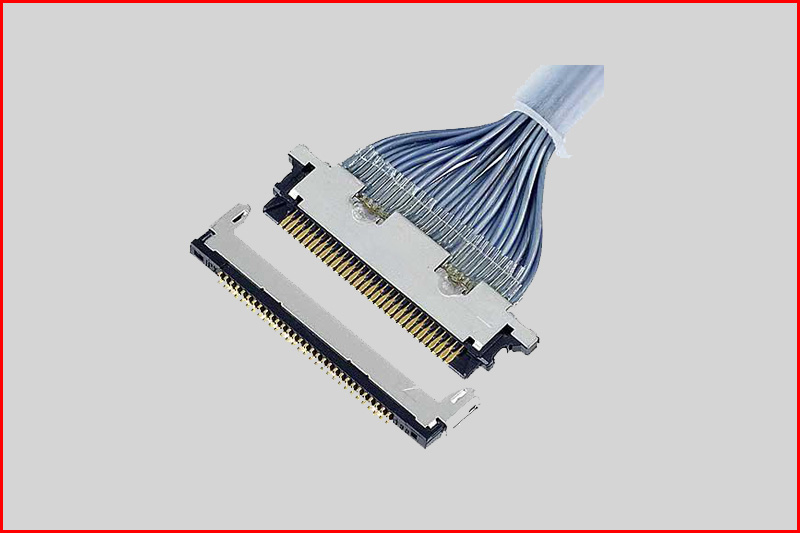

此款MCC屏线使用I-PEX 20346系列连接器
0.4mm间距，水平插拔款式，带有摩擦锁扣的极细同轴线连接器 (嵌合高度: 1.0 mm)
● 外壳的摩擦锁结构，提供高保持力
● 高速率传输，USB ® 3.0 (5 Gbps/lane) 应用的理想之选
● Pin 数范围较广
其广泛应用于以下
● TV
● 液晶显示器
● 无人机
● 医疗显示屏
● 工业显示屏
● 汽车显示屏
● 笔记本电脑，台式电脑显示屏
长度，线规，线色，接点定义以及外观，均可按照您的要求定制加工。
常用料号明细清单：
| 20345-010T-32R | 20345-020T-42R | 20347-010E-02 | 20346-020T-21 | 20345-040T-72R | 20345-130T-02R |
| 20345-015T-32R | 20345-020T-51R | 20347-010E-12 | 20346-020T-22 | 20345-110T-01R | 20345-130T-11R |
| 20345-020T-32R | 20345-020T-52R | 20347-010E-12R | 20346-020T-31 | 20345-110T-02R | 20345-130T-12R |
| 20345-025T-32R | 20345-020T-61R | 20347-110E-11 | 20346-020T-31R | 20345-110T-11R | 20345-130T-21R |
| 20345-030T-32R | 20345-020T-62R | 20347-110E-12 | 20346-020T-32 | 20345-110T-12R | 20345-130T-22R |
| 20345-035T-32R | 20345-020T-71R | 20347-210E-02 | 20346-025T-01 | 20345-110T-21R | 20345-130T-31R |
| 20345-040T-32R | 20345-020T-72R | 20347-210E-02R | 20346-025T-02 | 20345-110T-22R | 20345-130T-32R |
| 20346-010T-32R | 20345-025T-01R | 20347-310E-11R | 20346-025T-02R | 20345-110T-31R | 20345-130T-41R |
| 20346-015T-32R | 20345-025T-02R | 20347-310E-12 | 20346-025T-11 | 20345-110T-32R | 20345-130T-42R |
| 20346-020T-32R | 20345-025T-11R | 20347-015E-01 | 20346-025T-12 | 20345-110T-41R | 20345-130T-51R |
| 20346-025T-32R | 20345-025T-12R | 20347-015E-02 | 20346-025T-12R | 20345-110T-42R | 20345-130T-52R |
| 20346-030T-32R | 20345-025T-21R | 20347-015E-12 | 20346-025T-21 | 20345-110T-51R | 20345-130T-61R |
| 20346-035T-32R | 20345-025T-22R | 20347-115E-02 | 20346-025T-31 | 20345-110T-52R | 20345-130T-62R |
| 20346-040T-32R | 20345-025T-31R | 20347-115E-11 | 20346-025T-31R | 20345-110T-61R | 20345-130T-71R |
| 2047-0103 | 20345-025T-41R | 20347-115E-12 | 20346-025T-32 | 20345-110T-62R | 20345-130T-72R |
| 2047-0153 | 20345-025T-42R | 20347-215E-02 | 20346-030T-01 | 20345-110T-71R | 20345-135T-01R |
| 2047-0203 | 20345-025T-51R | 20347-315E-11 | 20346-030T-02 | 20345-110T-72R | 20345-135T-02R |
| 2047-0253 | 20345-025T-52R | 20347-315E-12 | 20346-030T-02R | 20345-115T-01R | 20345-135T-11R |
| 2047-0303 | 20345-025T-61R | 20347-020E-02 | 20346-030T-11 | 20345-115T-02R | 20345-135T-12R |
| 2047-0353 | 20345-025T-62R | 20347-020E-12 | 20346-030T-12 | 20345-115T-11R | 20345-135T-21R |
| 2047-0403 | 20345-025T-71R | 20347-120E-02 | 20346-030T-12R | 20345-115T-12R | 20345-135T-22R |
| 20347-310E-12R | 20345-025T-72R | 20347-120E-12 | 20346-030T-21 | 20345-115T-21R | 20345-135T-31R |
| 20347-315E-12R | 20345-030T-01R | 20347-220E-01 | 20346-030T-22 | 20345-115T-22R | 20345-135T-32R |
| 20347-320E-12R | 20345-030T-02R | 20347-220E-02 | 20346-030T-31 | 20345-115T-31R | 20345-135T-41R |
| 20347-325E-12R | 20345-030T-11R | 20347-320E-11R | 20346-030T-31R | 20345-115T-32R | 20345-135T-42R |
技术参数
▅ 连接器耐温与传输速率 -40℃ to 85℃ 3.75Gbps~20Gbps
▅ 电缆耐温与传输速率 -20℃ to 210℃ 0.75Gbps~5Gbps
▅ 产品传输速率 3.75Gbps(MAX)
▅ 产品测试要求 导通阻抗:5Ω, DC:200V/20MΩ,AC:100V/0.5MA,瞬间断短路:3sec
▅ 产品用途 医疗器械产品 NB，显示屏产品
▅ 连接器适用线规 40AWG 42AWG
▅ 连接器型号 I-PEX 20346-030T
▅ 线束规格 UL1354 多芯42AWG OD:0.35MM 7/0.03(50欧姆)
▅ 连接器母坐型号 20347-030E
▅ 接地片规格 0.01*0.6MM(H*W)
▅ 锡丝规格 OD:0.5MM Sn99Ag0.3Cu0.7
▅ 辅材 黑色醋酸布 黄色KAPTON
