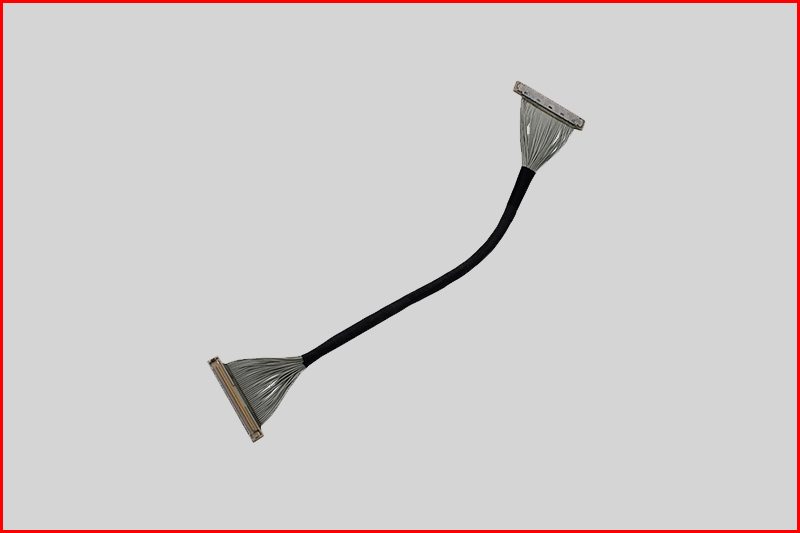

HRS DF36-15P-0.4SD 极细同轴电缆
DF36-15P-0.4SD
产品详情
使用0.4mm间距垂直接合 细线同轴连接器，其连接器特点：
1. 支持高密度实装及适用于小直径铰链结构
2. 强化屏蔽性能
3. 具有清晰锁扣感的可靠锁定结构
4. 高可靠性的接触结构
5. 防止爬锡
6. 坚固的插头结构
7. 符合RoHS2标准、无卤素要求
其广泛应用于以下
● TV
● 液晶显示器
● 无人机
● 医疗显示屏
● 工业显示屏
● 汽车显示屏
● 笔记本电脑，台式电脑显示屏
长度，线规，线色，接点定义以及外观，均可按照您的要求定制加工。
常用料号明细清单：
| DF36-15S-0.4V(51) | DF19-20P-1V(56) | DF21-30S-0.6V(56) | DF80-30S-0.5V(51) | DF81-50S-0.4H(51) | FX15SC-51S-0.5SV(30) |
| DF36-15S-0.4V(55) | DF19-20S-1C | DF21-20P-0.6SD(05) | DF80-30S-0.5V(52) | DF81-50S-0.4H(52) | FX15SW-31P-C |
| DF36-20P-0.4SD(51) | DF19-30S-1C | DF21-30P-0.6SD(05) | DF80-40P-SHL | DF81D-30P-0.4SD(51) | FX16-21P-0.5SD |
| DF36-20P-0.4SD(55) | DF19-8S-1C | DF38-32P-0.3SD(51) | DF80-40P-SHL(52) | DF81D-30P-0.4SD(52) | FX16-21P-0.5SDL |
| DF36-20S-0.4V(52) | DF19G-14P-1H(54) | DF38-40P-0.3SD(51) | DF80-40S-0.5V(51) | DF81D-40P-0.4SD(51) | FX16-21P-GND |
| DF36-20S-0.4V(55) | DF19G-14P-1H(90) | DF38A-30S-0.3V(51) | DF80-40S-0.5V(52) | DF81D-40P-0.4SD(52) | FX16-21P-GND(A) |
| DF36-25P-0.4SD(51) | DF19G-14S-1C(05) | DF38A-32S-0.3V(51) | DF80-50P-SHL | DF81D-50P-0.4SD(51) | FX16-21P-GNDL |
| DF36-25P-0.4SD(55) | DF19G-14S-1F(05) | DF38A-40S-0.3V(51) | DF80-50P-SHL(52) | DF81D-50P-0.4SD(52) | FX16-21P-GNDL(A) |
| DF36-25S-0.4V(51) | DF19G-14S-1F-GND(05) | DF38A-40S-0.3V(55) | DF80-50S-0.5V(51) | FX15-31P-C | FX16-21S-0.5SH |
| DF36-25S-0.4V(55) | DF19G-14S-1SD(05) | DF38B-30P-0.3SD(51) | DF80-50S-0.5V(52) | FX15-31S-0.5SV | FX16-21S-0.5SH(30) |
| DF36-30P-0.4SD(51) | DF19G-14S-1SD-GND | DF49-20P-0.4SD(51) | DF80D-30P-0.5SD(51) | FX15-31S-0.5SV(30) | FX16-21S-0.5SV |
| DF36-30P-0.4SD(55) | DF19G-20P-1H(54) | DF49-20P-SHL | DF80D-30P-0.5SD(52) | FX15M-21P-C | FX16-21S-0.5SV(30) |
| DF36-40P-0.4SD(51) | DF19G-20P-1H(90) | DF49-20S-0.4H(51) | DF80D-40P-0.5SD(51) | FX15M-21S-0.5SH | FX16-31P-0.5SD |
| DF36-40P-0.4SD(55) | DF19G-20S-1C(05) | DF49-40P-0.4SD(51) | DF80D-40P-0.5SD(52) | FX15M-21S-0.5SH(30) | FX16-31P-0.5SDL |
| DF36-45P-0.4SD(51) | DF19G-20S-1F(05) | DF49-40P-SHL | DF80D-50P-0.5SD(51) | FX15M-31P-C | FX16-31P-GND |
| DF36-50P-0.4SD(51) | DF19G-20S-1F-GND(05) | DF49-40S-0.4H(51) | DF80D-50P-0.5SD(52) | FX15M-31S-0.5SH | FX16-31P-GND(A) |
| DF36-50P-0.4SD(55) | DF19G-20S-1SD(05) | DF56-26P-0.3SD(51) | DF80J-30S-0.5V(51) | FX15M-31S-0.5SH(30) | FX16-31P-GNDL |
| DF36A-15S-0.4V(51) | DF19G-20S-1SD-GND | DF56-26P-SHL | DF81-30P-LCH | FX15S-31P-C | FX16-31P-GNDL(A) |
| DF36A-15S-0.4V(55) | DF19G-30P-1H(54) | DF56-30P-0.3SD(51) | DF81-30P-LCH(52) | FX15S-31S-0.5SH | FX16-31S-0.5SH |
| DF36A-25S-0.4V(51) | DF19G-30P-1H(90) | DF56-30P-SHL | DF81-30P-SHL | FX15S-31S-0.5SH(30) | FX16-31S-0.5SH(30) |
| DF36A-25S-0.4V(55) | DF19G-30S-1C(05) | DF56-40P-0.3SD(51) | DF81-30P-SHL(52) | FX15S-41P-0.5SD | FX16-31S-0.5SV |
| DF36A-30S-0.4V(51) | DF19G-30S-1F(05) | DF56-40P-SHL | DF81-30S-0.4H(51) | FX15S-41P-C | FX16-31S-0.5SV(30) |
| DF36A-30S-0.4V(55) | DF19G-30S-1F-GND(05) | DF56-40S-0.3V(51) | DF81-30S-0.4H(52) | FX15S-41S-0.5SH | FX16F-21P-HC |
| DF36A-40S-0.4V(51) | DF19G-8P-1H(54) | DF56-50P-0.3SD(51) | DF81-40P-LCH | FX15S-51P-0.5SD | FX16F-31P-HC |
| DF36A-40S-0.4V(55) | DF19G-8S-1C(05) | DF56-50P-SHL | DF81-40P-LCH(52) | FX15S-51P-C | FX16M2-41P-HC |
| DF36A-45S-0.4V(51) | DF19K-20P-1H(54) | DF56-50S-0.3V(51) | DF81-40P-SHL | FX15S-51S-0.5SH | FX16M2-41P-HC(61) |
| DF36A-45S-0.4V(55) | DF19K-30P-1H(54) | DF56C-26S-0.3V(51) | DF81-40P-SHL(52) | FX15SC-41S-0.5SH | FX16M2-41S-0.5SH |
| DF36A-50S-0.4V(51) | DF19KR-14P-1H(54) | DF56C-30S-0.3V(51) | DF81-40S-0.4H(51) | FX15SC-41S-0.5SH(30) | FX16M2-41S-0.5SH(30) |
| DF36A-50S-0.4V(55) | DF19KR-20P-1H(54) | DF56C-40S-0.3V(51) | DF81-40S-0.4H(52) | FX15SC-41S-0.5SV | FX16M2-41S-0.5SV |
| DF36C-15P-0.4SD(51) | DF19L-14P-1H(54) | DF56C-50S-0.3V(51) | DF81-50P-LCH | FX15SC-41S-0.5SV(30) | FX16M2-41S-0.5SV(30) |
| DF36C-15P-0.4SD(55) | DF19L-20P-1H(54) | DF56L-26P-0.3SD(51) | DF81-50P-LCH(52) | FX15SC-51S-0.5SH | FX16M2-51P-HC |
| DF19-14P-1V(56) | DF19L-30P-1H(54) | DF80-30P-SHL | DF81-50P-SHL | FX15SC-51S-0.5SH(30) | FX16M2-51P-HC(61) |
| DF19-14S-1C | DF21-20S-0.6V(56) | DF80-30P-SHL(52) | DF81-50P-SHL(52) | FX15SC-51S-0.5SV | FX16M2-51S-0.5SH |
技术参数
▅ 连接器耐温与传输速率 -40℃ to 85℃ 3.75Gbps~20Gbps
▅ 电缆耐温与传输速率 -20℃ to 210℃ 0.75Gbps~5Gbps
▅ 产品传输速率 3.75Gbps(MAX)
▅ 产品测试要求 导通阻抗:5Ω, DC:200V/20MΩ,AC:100V/0.5MA,瞬间断短路:3sec
▅ 产品用途 医疗器械产品 NB，显示屏产品
▅ 连接器适用线规 40AWG 42AWG 44AWG 46AWG
▅ 连接器型号 HRS DF36-15P-0.4SD
▅ 线束规格 UL1354 多芯42AWG OD:0.35MM 7/0.03(50欧姆)
▅ 连接器母坐型号 DF36-15S-0.4V
▅ 接地片规格 0.01*0.6MM(H*W)
▅ 锡丝规格 OD:0.5MM Sn99Ag0.3Cu0.7
▅ 辅材 黑色醋酸布 黄色KAPTON
